    Create a Network in OpenStack

    20.07.2018 - by Stefan Hoffmann



    Due to the limitation of IPv4 addresses and to isolate the network of our customers, we change our network setup. We don’t assign a public IPv4 address to every instance.
    There will be a single external network called “floating-IPv4” (currently “shared-public-IPv4”), acting as a shared public network common to all projects. NO instance will be able to connect to this network after every instance has been migrated to the new setup. Prior to spawning any instances, you need to create at least one private network, using the procedure described in this blog post. Instances can then be created and connected to the private network.
    Instances created on the private network don’t get direct connectivity to the extrenal world. To be able to communicate with your instances, you need to assign a floating IP to them. You can reduce the number of floating IPs you use by configuring SSH forwarding on one of your instances to access the other instances in the same private network.

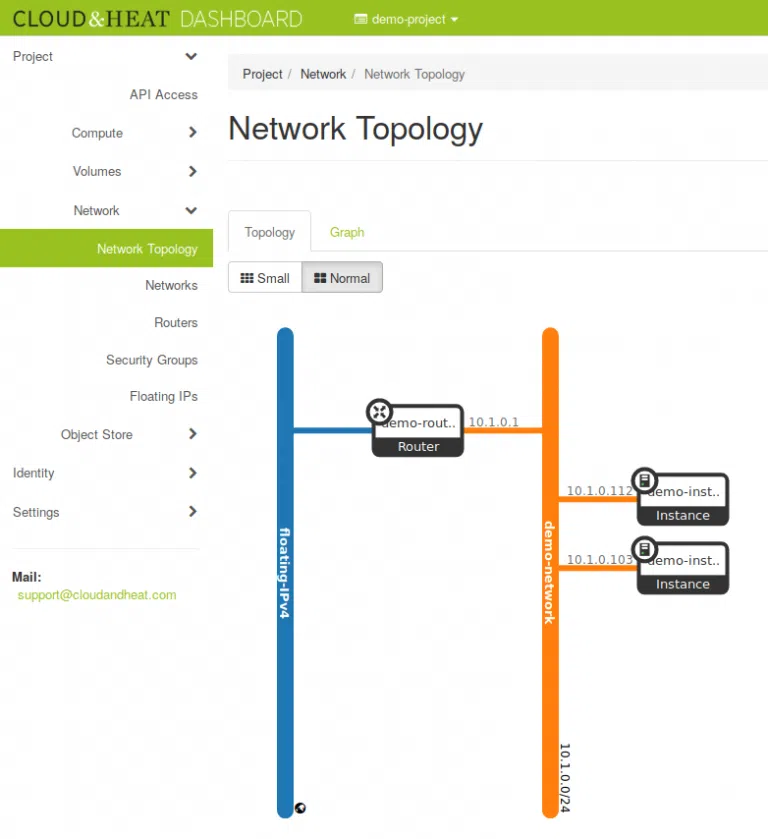

    Not every instance needs an IP reachable from the internet and with this private network setup, your network is isolated from the networks and instances of other users and the internet. A private network is only part of one project, but one project can have several private networks.



    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing



    Network Setup

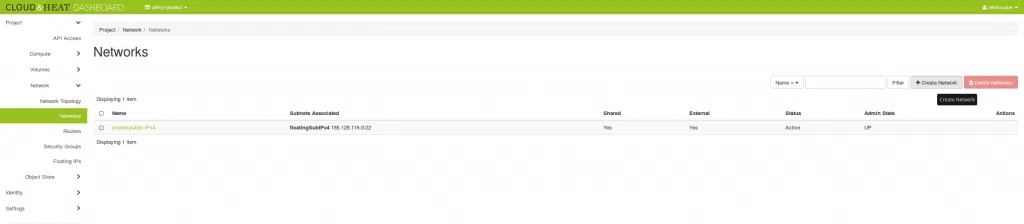

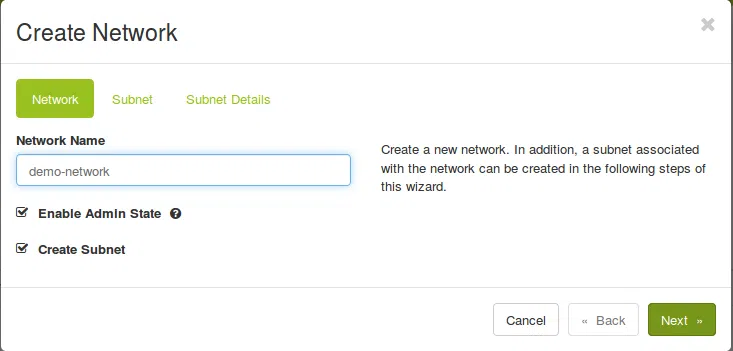

    Create a network:

    openstack network create demo-network



    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

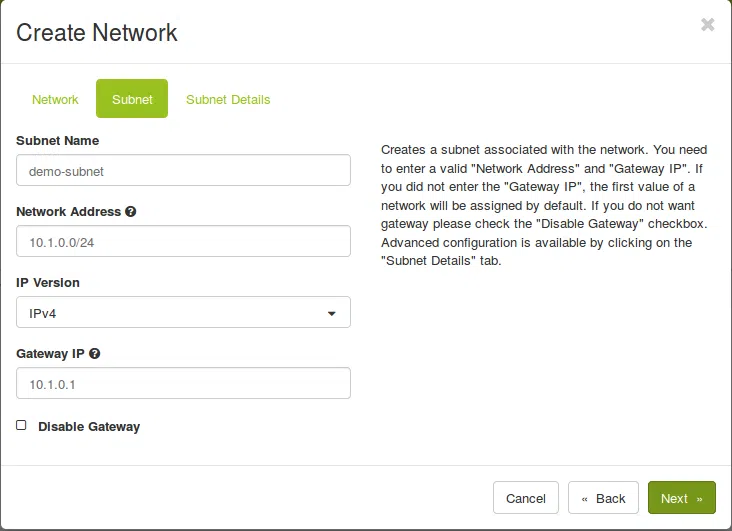

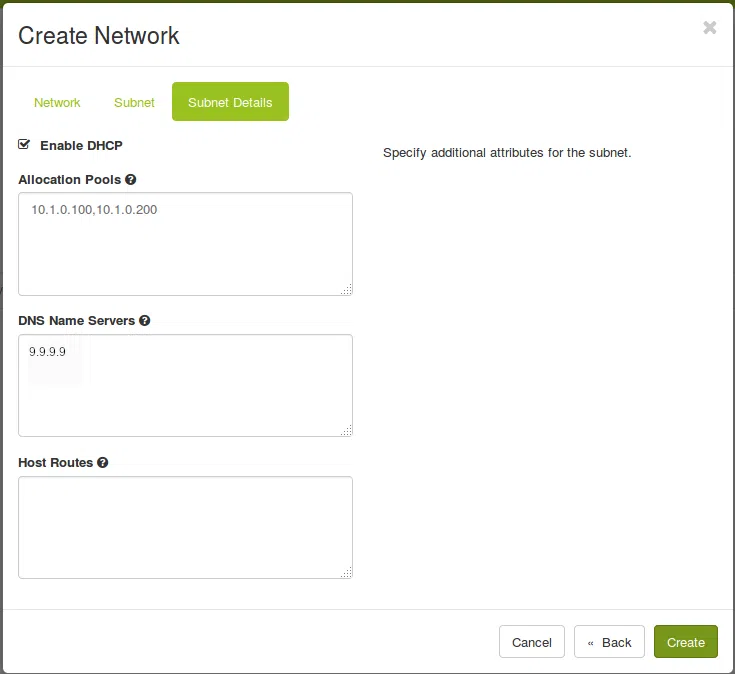

    Create a subnet inside the new network. You can choose every networkrange and allocationpool-range you like, but it should be in the private IP address range. You are also free to chose the DNS nameserver you prefer.

    openstack subnet create demo-subnet --network demo-network --subnet-range 10.1.0.0/24 --gateway 10.1.0.1 --allocation-pool start=10.1.0.100,end=10.1.0.200 --dns-nameserver 9.9.9.9





    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

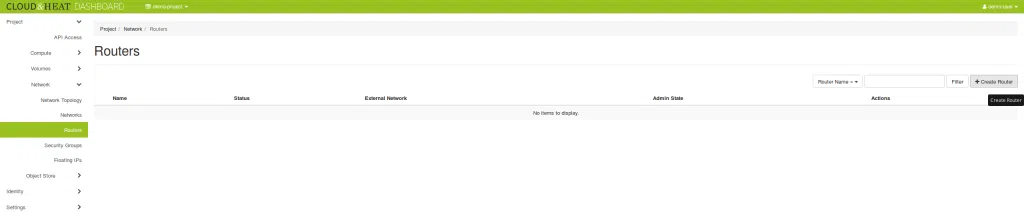

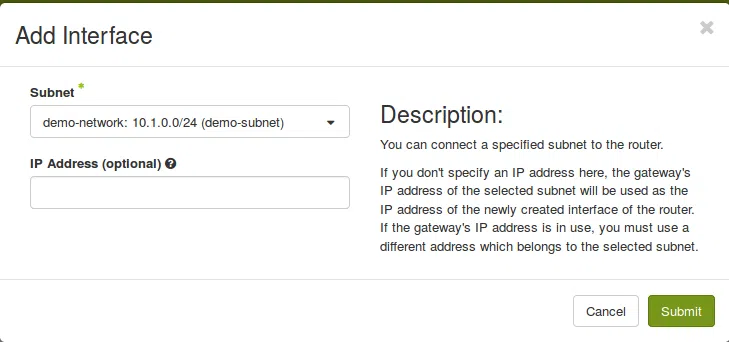

    Now create a router to connect the private `demo-network` to the public `floating-IPv4` external network:



    openstack router create demo-router
    openstack router set --external-gateway shared-public-IPv4 demo-router
    openstack router add subnet demo-router demo-subnet



    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Spawn instances

    Create a security group

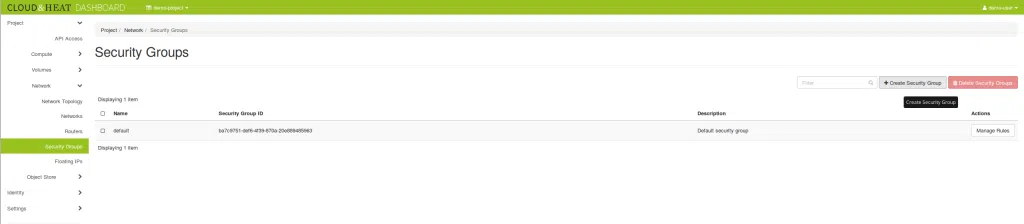

    Your project comes with a `default` security group. All egress (outgoing) traffic and intercommunication in the default group are allowed and all ingress (incomming) from outside of the default group is dropped.

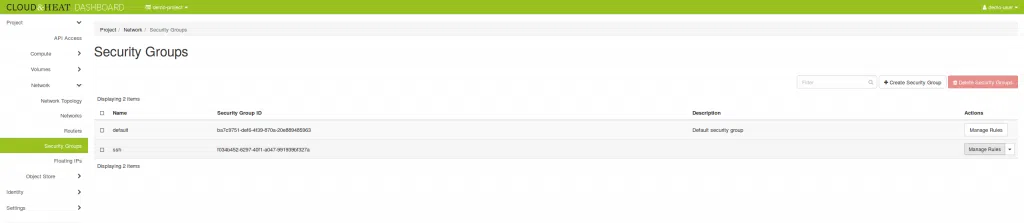

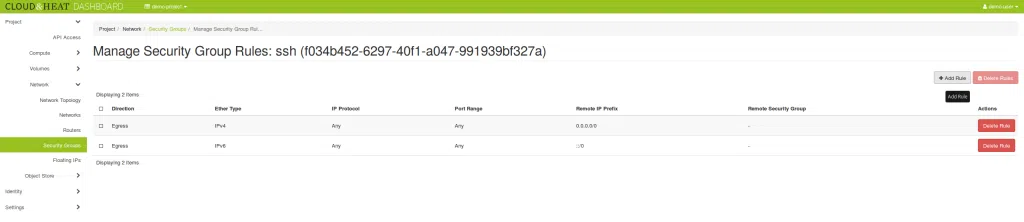

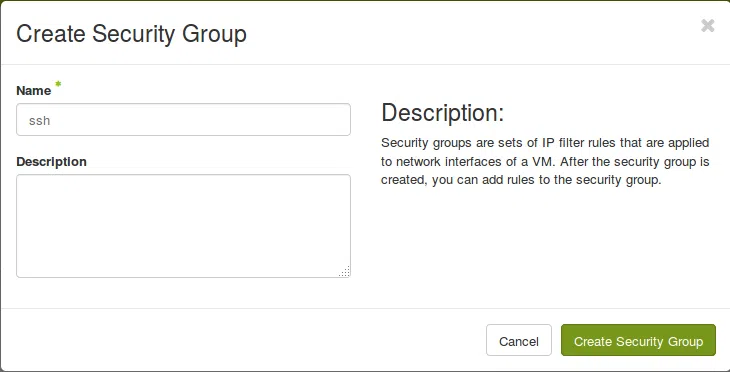

    In order to access our instances via SSH, we have to create an additional security group to allow port 22. The incoming ICMP traffic can also be allowed to ping (ICMP) the instances.



    openstack security group create ssh
    openstack security group rule create --protocol tcp --dst-port 22 --ingress ssh
    openstack security group create icmp
    openstack security group rule create --protocol icmp icmp



    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing



    Note : Be carefull with the rules, you allow. For example don’t allow ICMP traffic if you don’t need to.

    Note : You should restrict the source IP range, that has access to the instances.

    Start Instance

    Use DHCP and get any IP

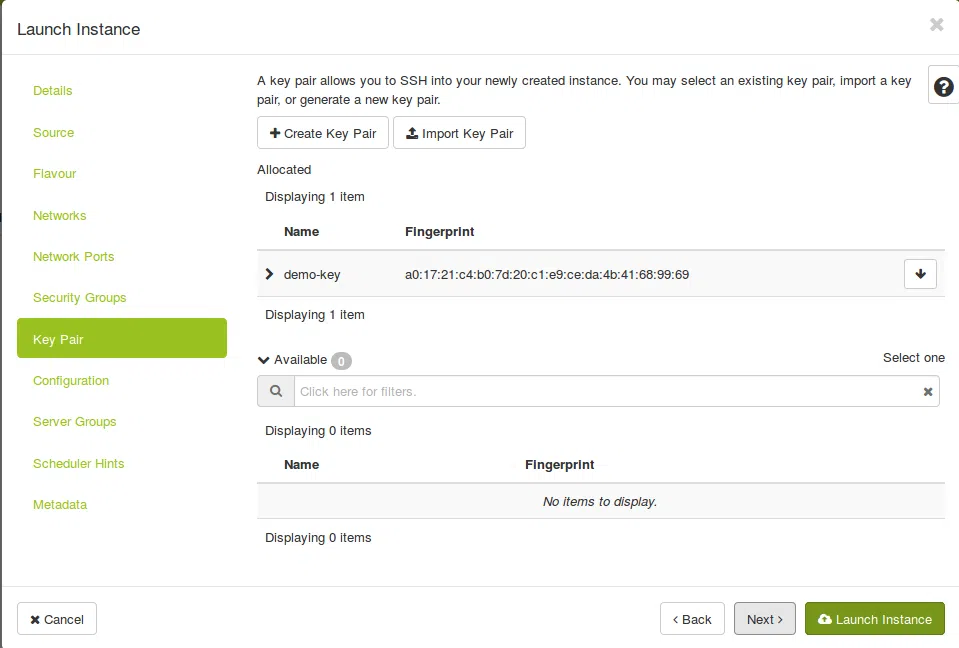

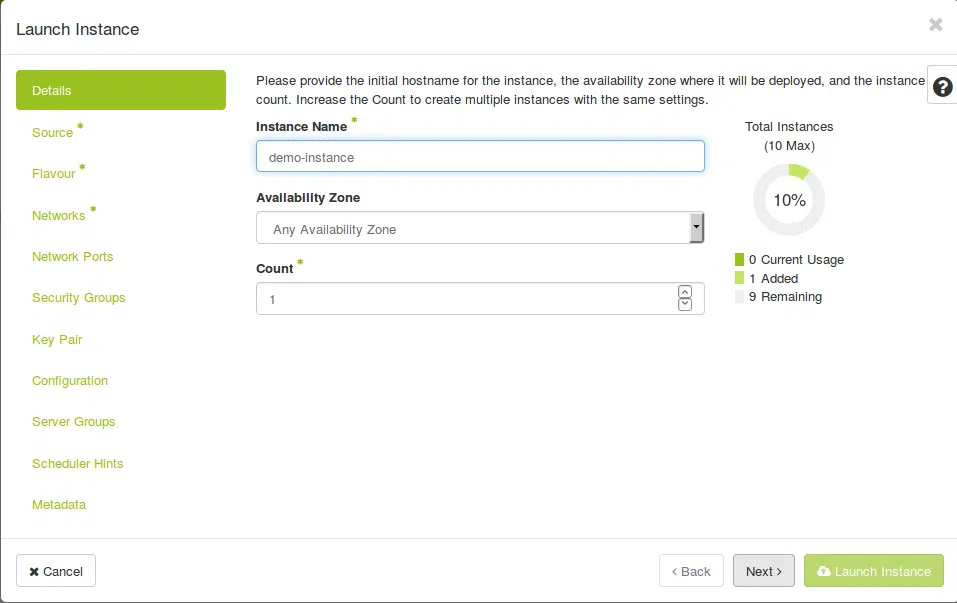

    Start an Instance and select the network:



    openstack server create --flavor M --image 'Ubuntu 16.04 LTS x64' --key-name demo-key --network demo-network --security-group default --security-group ssh --security-group icmp demo-instance



    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing



    The instance get an IP via DHCP from the range specified at the subnet creation. To get the private IP of the instance run:



    openstack server show demo-instance



    Field Value
    OS-DCF:diskConfig MANUAL
    OS-EXT-AZ:availability_zone nova
    OS-EXT-STS:power_state Running
    OS-EXT-STS:task_state None
    OS-EXT-STS:vm_state active
    OS-SRV-USG:launched_at 2018-07-05T11:31:51.00000
    OS-SRV-USG:terminated_at None
    accessIPv4
    accessIPv6
    addresses demo-network=10.1.0.103
    config_drive
    created 2018-07-05T11:28:36Z
    flavor M (115)
    hostId Ad6cd2f4539ff015324bb735396b3b39b29a17007245cca9810dec70
    id 6bddcf6e-d495-4887-9706-4dcfe0ae3ac2
    image Ubuntu 16.04 LTS x64 (5eaf550b-28eb-46bb-a179-31fb5468c2ef)
    key_name Demo-key
    name Demo-instance
    Progress 0
    project_id 62bf1933f89443bdbe4435a2856d1293
    Properties
    security_groups name=’default’
    name=’ssh’
    name=’icmp’
    status ACTIVE
    updated 2018-07-05T11:32:18Z
    user_id fa7ead99172d475eade844e14b0bc57e
    volumes_attached



    The ‚addresses‘ field shows all addresses assigned to the instance.

    Access the instance

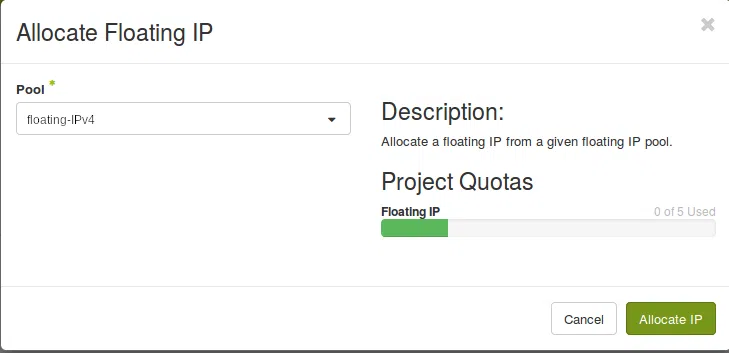

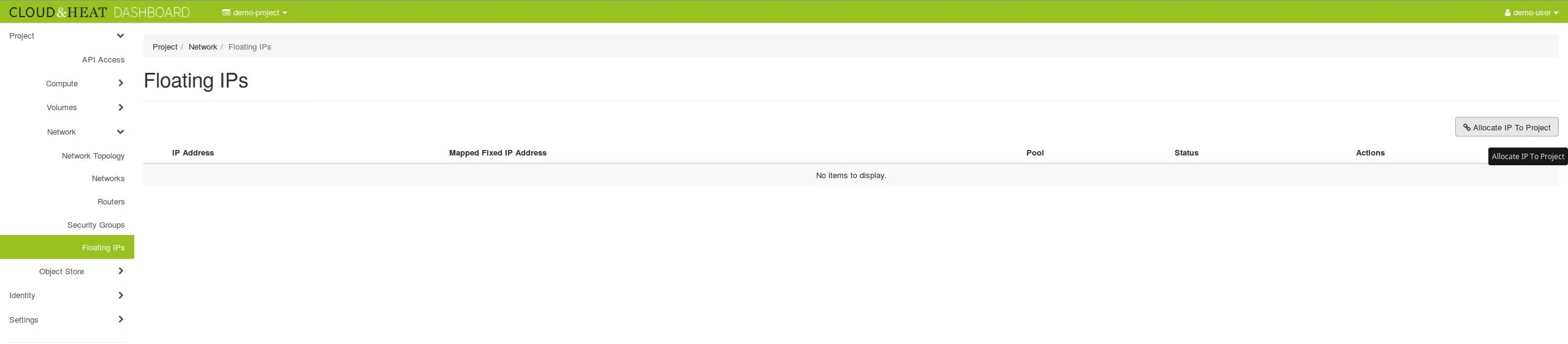

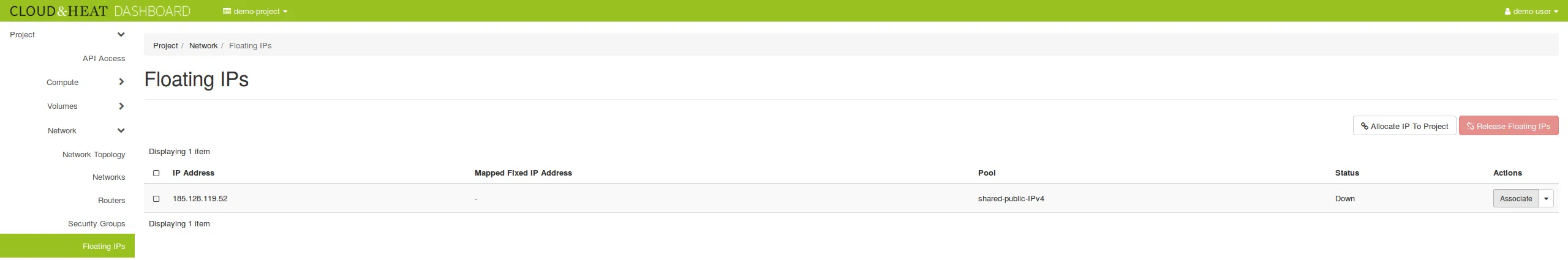

    To access the instance from outside the private network, we have to assign it a floating IP. In this example, 10.1.0.103 is the local address of the instance:



    openstack port list | grep 10.1.0.103
    c9e0fdc4-0db4-4f97-a483-77169a0f7b77 fa:16:3e:bb:82:78 ip_address=’10.1.0.103′, subnet_id=’bb34a4bd-fd37-4b52-9833-06aabdc69a47′ ACTIVE



    openstack floating ip create shared-public-IPv4 --port c9e0fdc4-0db4-4f97-a483-77169a0f7b77



    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Cloud and Heat | Blog | Network| OpenStack | Green Computing | Edge Computing

    Now you can see the floating IP at the instance details (`openstack server show demo-instance`) and you can ping and SSH it.

    The floating IP is connected to the network port. Technically the router does the NATing from the floating to the private IP. So the operating system running in the instance is not aware of the associated floating IP.

    In the standard setup, every project has five floating IPs. If you need more floating IPs, please contact us at support@cloudandheat.com
